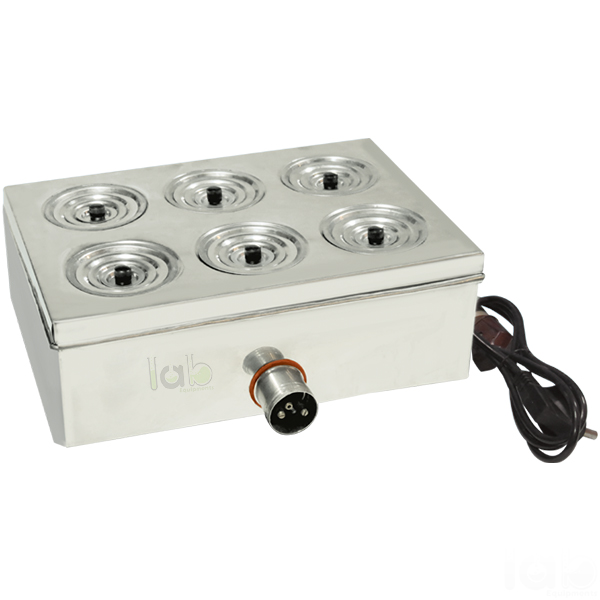

Unstirred Thermostatic Water Bath, 22 Litre
Product Code : EL-WB-10799
Quick answer: The unstirred thermostatic water bath, 22 litre, is an analogue laboratory water bath that holds samples at a set temperature for heating, incubation and warming of reagents. It works from ambient +5°C to 100°C with ±0.5°C stability at 45°C, and its 500 x 300 x 150 mm tank takes large batches. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Value |
|---|---|
| Bath capacity | 22 litres |
| Temperature range | Ambient +5°C to 100°C |
| Stability | ±0.5°C at 45°C |
| Control | Analogue thermostat, unstirred tank |
| Internal dimensions (W x D x H) | 500 x 300 x 150 mm |
| External dimensions (W x D x H) | 538 x 332 x 290 mm |
| Power supply | 230 V AC, 50-60 Hz (120 V AC, 50-60 Hz model optional) |
| Electrical safety class | Class 1 |
The same analogue bath is also offered in 2.5, 4, 8, 14 and 28 litre sizes.
How it is used
In an unstirred bath the heater warms the water from below and heat spreads through the tank by natural convection, so there is no pump or stirrer to maintain. The thermostat switches the heater on and off to hold the set point, and at 45°C the water stays within ±0.5°C. The 22 litre tank is the size to choose when a class or a routine workload needs many flasks, bottles or tube racks heated at once.
The bath will run at 100°C but is not designed for continuous boiling. Above 60°C a lid is recommended to cut evaporation and keep the temperature steady.
- Stand the bath on a level bench and fill the tank with enough water to cover the samples, staying below the rim.
- Set the thermostat to the required temperature and let the water settle at that value.
- Load flasks, bottles or tube racks, and fit a lid when working above 60°C.
- Top up the water during long runs, as some is lost to evaporation.
Key features
- 22 litre tank, 500 x 300 x 150 mm inside, for large sample loads
- Analogue thermostatic control from ambient +5°C to 100°C
- Holds ±0.5°C at 45°C for incubation work
- Unstirred design with no moving parts in the water
- Class 1 electrical safety construction
- Runs on 230 V AC, 50-60 Hz, with a 120 V model available
Documentation and supply
Installation instructions and a manual are supplied with the bath. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the 22 litre unstirred water bath at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Water Bath products
- Water Bath Stainless Steel Test Tube Rack (EL-WB-10798)
- Unstirred Thermostatic Water Bath, 2.5 Litre (EL-WB-10800)
- Digital Stirred Water Bath, 8 Litre (EL-WB-10797)
- Unstirred Thermostatic Water Bath, 14 Litre (EL-WB-10801)
- Polypropylene Water Bath Spheres (EL-WB-10802)
- Hinged Gable Lid to Suit 2 & 4 Litre Unstirred Baths (EL-WB-10803)
The full range is in the Water Bath section of the Laboratory Equipment range.
Frequently asked questions
What temperature range does the 22 litre water bath cover?
It works from 5°C above room temperature up to 100°C, with ±0.5°C stability measured at 45°C.
Can the bath be used for boiling?
It will operate at 100°C, but it is not designed for continuous boiling. A lid is recommended for any work above 60°C.
What other sizes are available in this range?
Besides the 22 litre bath, the unstirred thermostatic range covers 2.5, 4, 8, 14 and 28 litre baths.
What is the price of the 22 litre unstirred water bath?
Prices are not published on the website. Add the 22 litre unstirred water bath to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-WB-10799 and the quantity, to receive a quotation.
Does Lab Exports manufacture the 22 litre unstirred water bath?
Yes. Lab Exports manufactures the 22 litre unstirred water bath at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-WB-10799.
Request a quote
Email [email protected] with the house code EL-WB-10799 and the quantity, or add the 22 litre unstirred water bath to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
