Vacuum Extractor Bird Anterior and Posterior Cups Set
Product Code : EL-HE-10948
Quick answer: A Bird vacuum extractor set is obstetric equipment for assisted vaginal delivery: a metal cup is applied to the baby's head, vacuum holds it in place, and gentle traction is applied with contractions. This set includes two Bird anterior cups of 50 mm and 60 mm and one 50 mm Bird posterior cup. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Component | Specification |
|---|---|
| Anterior cups | 2 Bird anterior cups, 50 mm and 60 mm |
| Posterior cup | 1 Bird posterior cup, 50 mm |
| Cup material | Stainless steel, chrome/nickel plated |
Confirm the vacuum source (hand pump or electric unit) and the full set contents with [email protected] when requesting a quote.
How the vacuum extractor is used
Vacuum extraction, also called ventouse delivery, is one of the two standard methods of instrumental vaginal delivery, the other being forceps. It is used in the second stage of labour, for example when progress stops or the mother is exhausted, and is carried out by trained obstetric staff.
The Bird cups are a modification of the Malmstrom metal cup, with the suction tube and the traction chain attached separately. The anterior cup is used when the baby's head is in the usual occiput anterior position. The posterior cup has its suction outlet at the side, so it can be placed further back on the head when the baby lies occiput posterior or the head is deflexed.
- The operator confirms that the conditions for a vacuum delivery are met and selects the cup type and size.
- The cup is placed over the flexion point of the baby's head and the vacuum is raised gradually.
- Traction is applied along the pelvic axis in time with contractions and maternal effort.
- The vacuum is released once the head is delivered, and the cup is removed.
- The cups are cleaned and sterilised before reuse.
Key features
- Two anterior cup sizes, 50 mm and 60 mm, for the common occiput anterior position.
- A 50 mm posterior cup with a side outlet for occiput posterior and deflexed positions.
- Bird design with separate suction and traction connections.
- Metal cups in chrome/nickel plated stainless steel that withstand repeated cleaning and sterilisation.
- Supplied as a set for the delivery room.
Documentation and supply
Instructions for use are supplied with the set. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the vacuum extractor set at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Hospital Equipment products
- Alkaline Battery Dry Cell (EL-HE-10947)
- Electrosurgical Unit w/access (EL-HE-10949)
- Breast Pump Manual w/access (EL-HE-10946)
- Light Examination Mobile w/access (EL-HE-10950)
- Adult Wheelchair (EL-HE-10945)

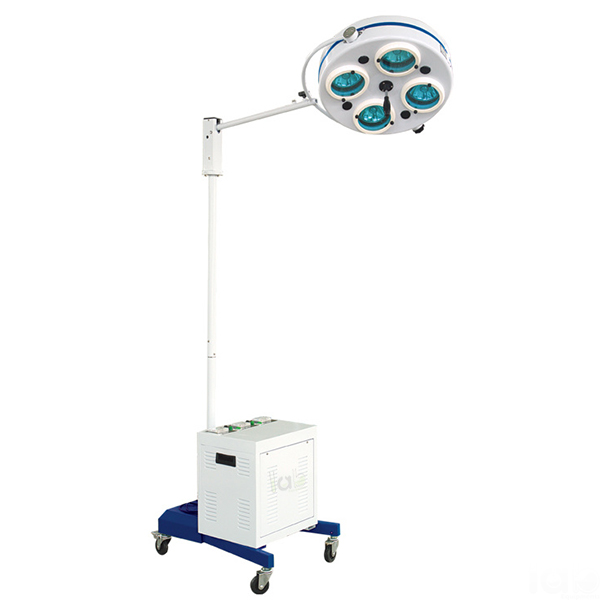

- Light Operating Room Mobile w/access (EL-HE-10951)
The full range is in the Hospital Equipment section of the Hospital Lab range.
Frequently asked questions
What cups are in the vacuum extractor set?
Two Bird anterior cups, 50 mm and 60 mm, and one Bird posterior cup, 50 mm, in chrome/nickel plated stainless steel.
When is the posterior cup used?
When the baby's head lies in the occiput posterior position or is deflexed; the side outlet lets the cup sit further back on the head.
What is a Bird cup?
A metal vacuum extractor cup developed by Bird as a modification of the Malmstrom cup, with the vacuum tube and the traction chain attached separately.
What is the price of the vacuum extractor set?
Prices are not published on the website. Add the vacuum extractor set to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-HE-10948 and the quantity, to receive a quotation.
Does Lab Exports manufacture the vacuum extractor set?
Yes. Lab Exports manufactures the vacuum extractor set at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-HE-10948.
Request a quote
Email [email protected] with the house code EL-HE-10948 and the quantity, or add the vacuum extractor set to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
