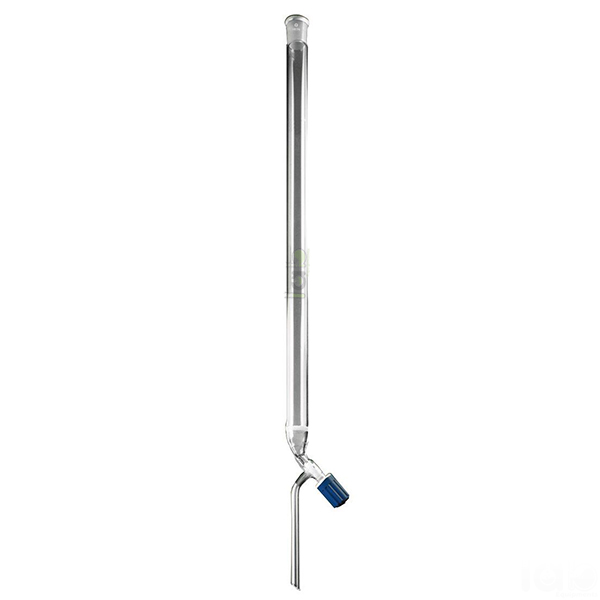

Chromatography Column, Pyrex
Product Code : EL-C-10973
Quick answer: The Chromatography Column, Pyrex is a 300 x 20 mm borosilicate glass column with a porosity 'O' sintered disc to support the packing, a 'Rotaflo' stopcock of 3 mm bore to control the flow, and a 19/26 socket at the top. It is used to separate and purify compounds by column chromatography. Lab Exports supplies it as a reseller to schools, colleges and universities.
Specifications
| Item | Detail |
|---|---|
| Material | Pyrex (borosilicate glass) |
| Size (L x diameter) | 300 x 20 mm |
| Stopcock | 'Rotaflo' stopcock, 3 mm bore |
| Sintered disc | Porosity 'O' |
| Top joint | 19/26 socket |
How the column chromatography experiment is done
Column chromatography works on the same principle as TLC but on a preparative scale. The column is packed with an adsorbent such as silica gel or alumina (the stationary phase), the mixture is loaded at the top, and a solvent (the eluent) is run through. Components that are held less strongly move down faster and leave the column first, so they can be collected in separate fractions.
The sintered disc at the base holds the packing in place without the plug of cotton wool used in simpler columns, and the stopcock lets the operator set a steady drip rate. Borosilicate glass resists the organic solvents used as eluents.
- Clamp the column vertically and close the stopcock.
- Pour in a slurry of the adsorbent in the eluent and let it settle on the sintered disc, keeping the solvent above the packing.
- Load the sample in a small volume of solvent onto the top of the packing.
- Open the stopcock to a steady flow and keep the column topped up with eluent; a reservoir can be fitted to the 19/26 socket.
- Collect the eluate in numbered fractions and check them by TLC.
Key features
- Pyrex borosilicate glass, 300 x 20 mm
- 'Rotaflo' stopcock with 3 mm bore for fine flow control
- Porosity 'O' sintered disc supports the stationary phase
- 19/26 socket for a solvent reservoir or other ground-glass joints
- Suits purification and isolation of compounds
Documentation and supply
Lab Exports supplies the Pyrex chromatography column as a reseller; it is not manufactured by Lab Exports. It is supplied from Delhi to schools, colleges and universities in India and 60+ countries, with the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Chromatography products

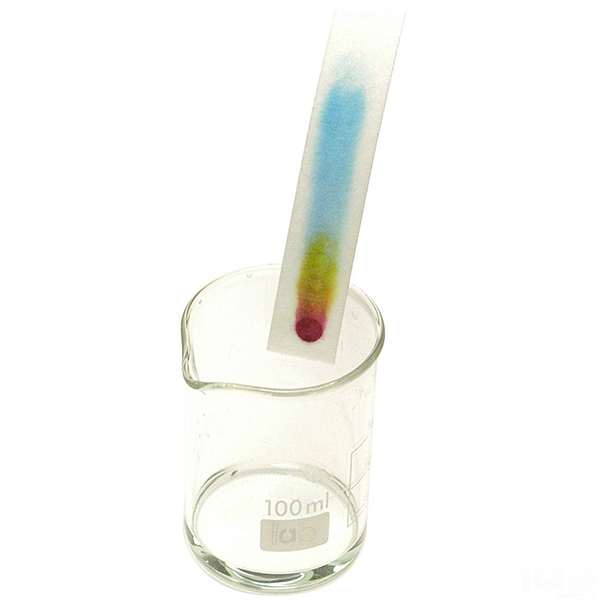

- Chromatography Separation Ink (EL-C-10972)
- Hot Air Blower (EL-C-10971)

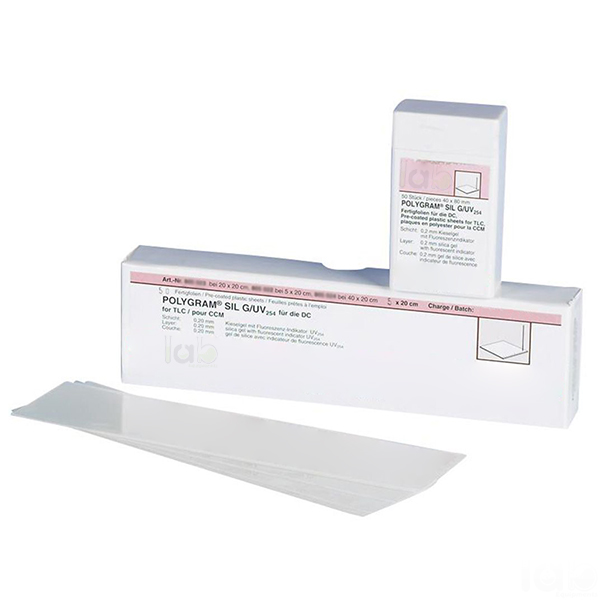

- Chromatography TLC Plates, 'Polygram' Pre-Coated (EL-C-10970)

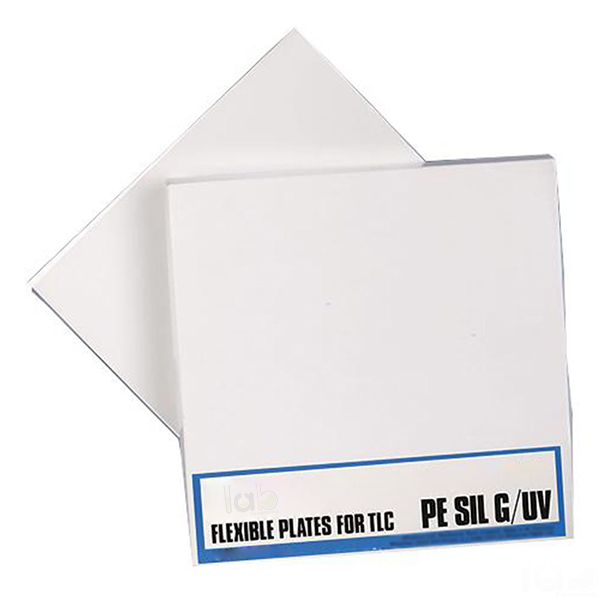

- Chromatography TLC Plates (EL-C-10969)
The full range is in the Chromatography section of the Chemistry Lab range.
Frequently asked questions
What size is the Pyrex chromatography column?
300 mm long and 20 mm in diameter, with a 19/26 socket at the top.
What supports the packing in the column?
A porosity 'O' sintered glass disc at the base, above the 'Rotaflo' stopcock of 3 mm bore.
What is the price of the Pyrex chromatography column?
Prices are not published on the website. Add the Pyrex chromatography column to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-C-10973 and the quantity, to receive a quotation.
Is the Pyrex chromatography column made by Lab Exports?
No. Lab Exports supplies the Pyrex chromatography column as a reseller under house code EL-C-10973. It can be quoted together with other laboratory equipment in one enquiry.
Request a quote
Email [email protected] with the house code EL-C-10973 and the quantity, or add the Pyrex chromatography column to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
