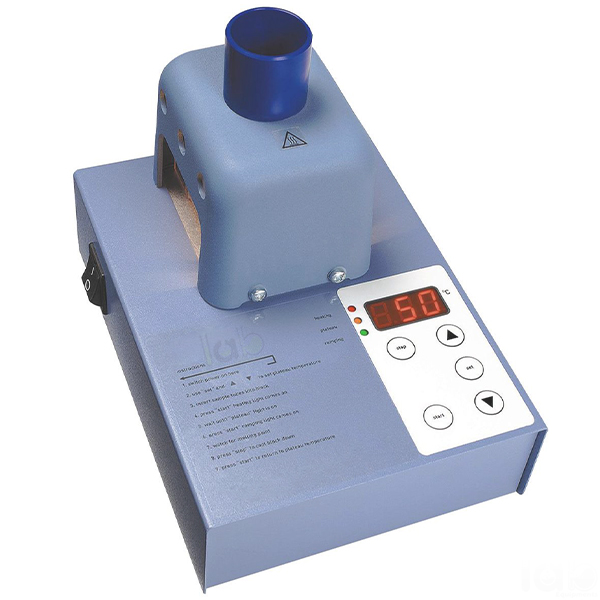

Digital Melting Point Apparatus
Product Code : EL-CLE-10994
Quick answer: The Digital Melting Point Apparatus heats two capillary samples at once from ambient to 300 deg C and shows the temperature on a three-digit LED display, while built-in illumination and a magnifying lens give a clear view of the melt. It is used to identify solids and check their purity. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Value |
|---|---|
| Temperature range | Ambient to 300 °C |
| Display | Three-digit LED |
| Heating rates | 20 °C/min to plateau; 2 °C/min to melt |
| Samples | 2 tested simultaneously |
| Viewing | Built-in illumination and magnifying lens |
| Supply | 220/240 V |
| Dimensions (L x W x H) | 160 x 220 x 170 mm |
How the melting point experiment is done
Melting point is one of the quickest checks on a solid organic compound. A pure substance melts within a narrow range of a degree or two and matches its literature value; an impure or wrong sample melts lower and over a wider range. Mixing an unknown with a known sample and finding no drop in melting point (a mixed melting point) confirms that the two are the same compound.
The apparatus uses two heating rates for this. A fast rate of 20 °C per minute brings the block up to a plateau just below the expected melting point, then a slow rate of 2 °C per minute keeps the sample and the sensor at the same temperature, so the reading taken at the moment of melting is accurate.
- Fill two capillary tubes with 2 to 3 mm of finely powdered, dry sample at the sealed end.
- Insert both tubes into the heating block, where they are lit and seen through the magnifying lens.
- Heat at 20 °C per minute to a plateau a little below the expected melting point.
- Continue at 2 °C per minute and watch both samples through the lens.
- Record the display reading when the first liquid appears and when the last crystal melts.
Key features
- Tests two samples side by side, for example an unknown and a reference
- Temperature range from ambient to 300 °C
- Three-digit LED temperature display
- Built-in illumination and magnifying lens for a clear view of the melt
- Two heating rates: 20 °C/min to plateau, 2 °C/min to melt
- Designed for safe, simple operation in teaching laboratories on 220/240 V
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the digital melting point apparatus at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Chemistry Lab Equipment products
- Melting Point Tubes, Capillary (EL-CLE-10993)
- Melting Point Apparatus (EL-CLE-10995)
- Valve for Mini Gas Bottles (EL-CLE-10992)
- Simple Melting Point Apparatus (EL-CLE-10996)

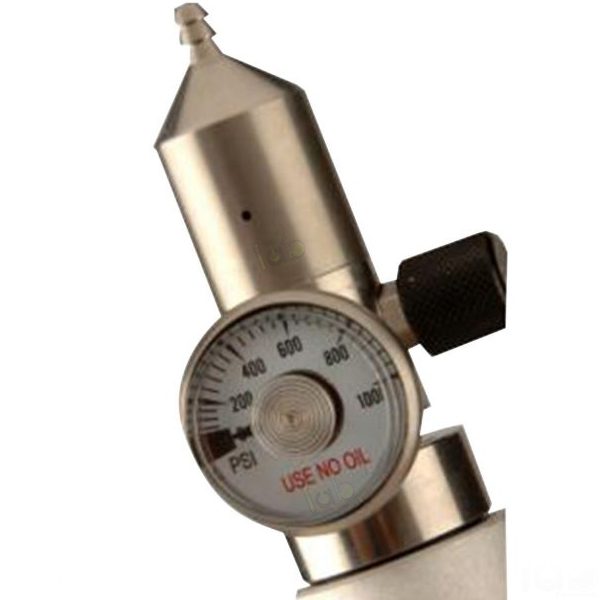

- Miniflow Regulator (EL-CLE-10991)
- Periodic Table (EL-CLE-10997)
The full range is in the Chemistry Lab Equipment section of the Chemistry Lab range.
Frequently asked questions
What temperature range does the digital melting point apparatus cover?
From ambient to 300 °C, shown on a three-digit LED display.
How many samples can be tested at once?
Two samples, heated side by side in the same block.
What heating rates does it use?
20 °C per minute up to the plateau, then 2 °C per minute through the melt.
What is the price of the digital melting point apparatus?
Prices are not published on the website. Add the digital melting point apparatus to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-CLE-10994 and the quantity, to receive a quotation.
Does Lab Exports manufacture the digital melting point apparatus?
Yes. Lab Exports manufactures the digital melting point apparatus at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-CLE-10994.
