Electrophoresis Power Supply
Product Code : EL-BLE-10644
Quick answer: An electrophoresis power supply provides the steady DC voltage that drives DNA, RNA or protein samples through a gel. This unit has selectable 25, 75 and 110 V settings, a maximum of 500 mA and 55 W, and three sets of output connectors to run up to three chambers at once. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Value |
|---|---|
| Voltage settings | 25 V, 75 V, 110 V |
| Maximum current | 500 mA |
| Maximum output | 55 W |
| Outputs | 3 sets of output connectors, for up to 3 chambers simultaneously |
| Display | LED screen, illuminated power switch |
| Protection | Overcurrent protection |
| Input | 230 V AC, 50/60 Hz |
How it is used
In gel electrophoresis, charged molecules move through a gel when a voltage is applied across it. DNA and RNA carry a negative charge on their phosphate groups, so they travel towards the positive electrode, and smaller fragments pass through the gel pores faster than larger ones. The power supply sets the voltage, which controls how fast and how cleanly the bands separate.
A lower setting such as 25 V suits long runs, while 75 V or 110 V gives quicker runs within a class practical. With three output sets, several groups can run their gels from one unit.
- Place the gel in the electrophoresis chamber, cover it with buffer and load the samples into the wells at the negative end.
- Connect the chamber leads to one set of output connectors, red to red and black to black.
- Select 25 V, 75 V or 110 V, switch on and check the reading on the LED screen.
- Switch off and disconnect the leads before removing the lid or the gel.
Key features
- Three sets of output connectors run up to three chambers at the same time
- Selectable voltage: 25 V, 75 V or 110 V
- Up to 500 mA and 55 W output
- LED screen and illuminated power switch
- Overcurrent protection
- Runs from 230 V AC, 50/60 Hz mains
Documentation and supply
Installation instructions and a manual are supplied with the instrument. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the electrophoresis power supply at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Biology Lab Equipment products
- DNA Activity Model (EL-BLE-10643)
- Ganong Potometer Apparatus (EL-BLE-10642)
- Potometer Apparatus White Stand (EL-BLE-10641)
- Dissecting Set (EL-BLE-10640)
- Digital Flame Photometer (EL-BLE-10639)

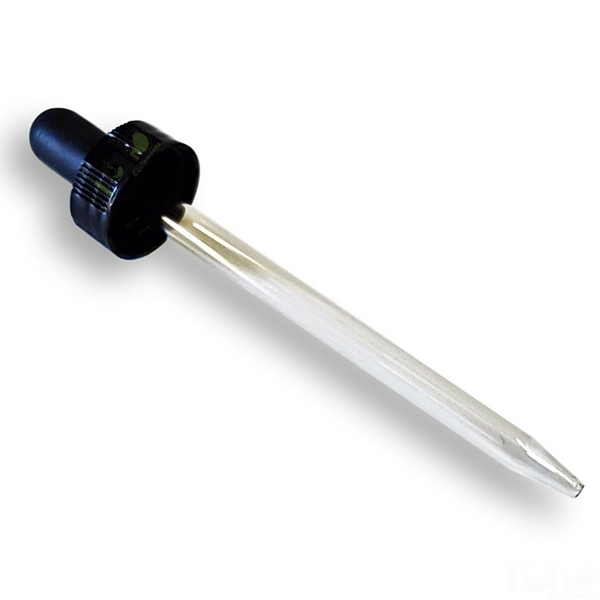

- Glass Dropper (EL-BLE-10638)
The full range is in the Biology Lab Equipment section of the Biology Lab range.
Frequently asked questions
How many gel chambers can the power supply run at once?
Up to three, through its three sets of output connectors.
What voltage settings does the electrophoresis power supply have?
25 V, 75 V and 110 V, with a maximum current of 500 mA and a maximum output of 55 W.
What mains supply does it need?
230 V AC, 50/60 Hz.
What is the price of the electrophoresis power supply?
Prices are not published on the website. Add the electrophoresis power supply to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-BLE-10644 and the quantity, to receive a quotation.
Does Lab Exports manufacture the electrophoresis power supply?
Yes. Lab Exports manufactures the electrophoresis power supply at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-BLE-10644.
Request a quote
Email [email protected] with the house code EL-BLE-10644 and the quantity, or add the electrophoresis power supply to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
