Analog Frequency Meter
Product Code : SCL-LM-11129

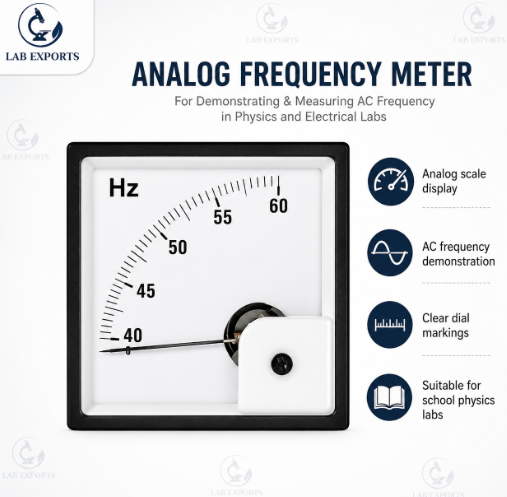

Quick answer: The Analog Frequency Meter indicates the frequency of an alternating-current supply in hertz on a graduated analog scale. It is used in physics and electrical laboratories to show what a frequency of 50 Hz means, to check an AC source and to teach students to read an analog scale. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Value |
|---|---|
| Instrument type | Analog frequency meter |
| Measured quantity | Electrical frequency |
| Unit | Hertz (Hz) |
| Display | Graduated analog scale |
The frequency range and connection details are not stated on this page; give the supply to be measured when requesting a quote.
How it is used
In an alternating-current supply the voltage reverses direction many times each second. The frequency f is the number of complete cycles per second, measured in hertz, and it is related to the period T by f = 1/T. The public mains supply in India runs at 50 Hz, so each cycle lasts 20 ms. A frequency meter turns this abstract idea into a reading students can see.
- Check that the supply to be measured lies within the range marked on the meter scale.
- Switch off the supply, then connect the meter across it, in parallel.
- Switch on and read the pointer against the graduated scale in hertz.
- Where the experiment uses a variable-frequency source, change the setting and record the new reading.
Comparing the meter reading with the period measured on a cathode ray oscilloscope is a good exercise in linking f = 1/T to a real signal.
Key features
- Analog indication of electrical frequency on a graduated scale.
- Reads directly in hertz, that is cycles per second.
- Suited to supervised physics, electricity and basic electronics demonstrations.
- Gives students practice in reading an analog electrical scale.
- Reusable laboratory meter for lessons on alternating current.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the analog frequency meter at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Lab Meters products
- Anemometer Model (SCL-LM-11118)
- Digital Ohms Meter - 20K ohm (SCL-LM-11116)
- Analog Ammeter Panel (SCL-LM-11151)
- Analog Voltmeter Panel Type (SCL-LM-11152)
- Portable Analog Wattmeter (SCL-LM-11153)
- Analog Stop Clock (SCL-LM-11103)
The full range is in the Lab Meters section of the Physics Lab range.
Frequently asked questions
What does an analog frequency meter measure?
The number of complete cycles per second of an alternating voltage or current, shown in hertz on a graduated scale.
How is the frequency meter connected?
Across the AC supply, in parallel, like a voltmeter, after checking that the supply is within the range marked on the scale.
What is the price of the analog frequency meter?
Prices are not published on the website. Add the analog frequency meter to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-LM-11129 and the quantity, to receive a quotation.
Does Lab Exports manufacture the analog frequency meter?
Yes. Lab Exports manufactures the analog frequency meter at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-LM-11129.
Request a quote
Email [email protected] with the house code SCL-LM-11129 and the quantity, or add the analog frequency meter to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
