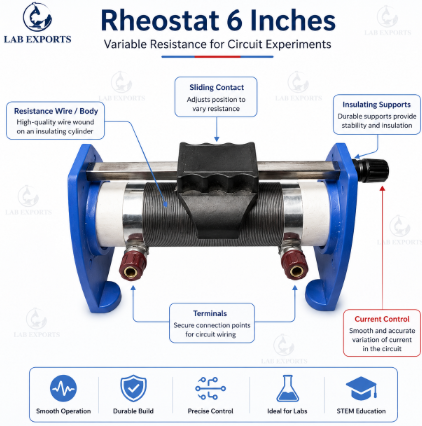

Rheostat 6 Inches
Product Code : SCL-EAE-11284
Quick answer: The Rheostat 6 Inches is a compact sliding rheostat with a nominal 6-inch format. Its movable contact sets how much resistance wire lies between the chosen terminals, so students can control current, watch meter readings change and carry out introductory Ohm's law work. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Detail |
|---|---|
| Apparatus type | Sliding variable resistor |
| Nominal size | 6 inches |
| Adjustment | Sliding contact along the resistance element |
| Primary function | Variable resistance and current control |
Resistance value, maximum current and terminal arrangement are not given on this page; confirm them in the quotation before use in a circuit.
How the 6-inch rheostat controls current
When the rheostat is placed in series with a lamp or resistor, the circuit resistance is the sum of the two: R total = R load + R rheostat. Sliding the contact changes the rheostat part of that sum, so for a fixed supply voltage the current I = V / R total goes down as more winding is brought in and up as less is used.
- Check the resistance and maximum current rating of the rheostat against the planned circuit.
- With the supply off, connect the correct terminals as shown in the experiment diagram.
- Move the slider to a high-resistance position.
- Switch on the low-voltage supply and move the slider gradually, reading the ammeter and voltmeter at each step.
Recording the readings in a table lets students see the inverse link between resistance and current, a first step before plotting a full V-I graph.
Key features
- Nominal 6-inch format for compact student set-ups
- Movable contact adjusts effective resistance in the circuit
- Demonstrates how a change in resistance changes current
- Slider position relates directly to circuit behaviour
- Used with compatible ammeters, voltmeters, switches and loads
- Reusable within its rating for repeated experiments
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the 6-inch rheostat at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Electrical and Electronics products
- Tapping Key (SCL-EAE-11283)
- Four Way Plug Key (SCL-EAE-11285)
- Rheostat 8 Inches (SCL-EAE-11282)
- Reversing Key / Commutator (SCL-EAE-11286)
- Rheostat 10 Inches (SCL-EAE-11281)
- One Way Plug Key (SCL-EAE-11287)
The full range is in the Electrical and Electronics section of the Physics Lab range.
Frequently asked questions
Why start with the slider at high resistance?
Starting at high resistance keeps the first current small. The current is then raised gradually, which protects meters, lamps and the winding itself.
Is the 6-inch rheostat suitable for introductory physics?
Yes. It is intended for introductory current-control, resistance-current and supervised Ohm's law practicals in school and college laboratories.
What is the price of the 6-inch rheostat?
Prices are not published on the website. Add the 6-inch rheostat to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-EAE-11284 and the quantity, to receive a quotation.
Does Lab Exports manufacture the 6-inch rheostat?
Yes. Lab Exports manufactures the 6-inch rheostat at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-EAE-11284.
