Solar Wind Dynamo Model
Product Code : SCL-EAE-11130
Quick answer: The Solar Wind Dynamo Model shows a complete chain of energy conversions in one assembly. Light on the photovoltaic panel produces electricity, which runs a DC motor; the motor's rotation drives a dynamo, and the dynamo's output lights an LED. It supports lessons on renewable energy, motors, generators and conservation of energy. Lab Exports manufactures it in Delhi for schools and colleges.
Specifications
| Stage | Component |
|---|---|
| 1. Light to electrical energy | Photovoltaic solar panel |
| 2. Electrical to mechanical energy | DC electric motor |
| 3. Mechanical to electrical energy | Dynamo (generator) stage |
| 4. Electrical energy to light | LED output |
| Construction | Single integrated model assembly |
For the panel rating and dimensions, email [email protected] with the house code SCL-EAE-11130.
How the model is used in teaching
Students often learn the forms of energy one at a time. This model links four conversions in sequence, so the class can follow energy from light to a glowing LED: radiant energy to electrical energy in the solar cell, electrical to kinetic energy in the motor, kinetic back to electrical energy in the dynamo, and electrical energy to light in the LED.
The motor and the dynamo are close relatives. A motor turns because a current-carrying coil in a magnetic field feels a force; a dynamo produces a current because a coil turned in a magnetic field has an EMF induced in it. Some energy is lost as heat and sound at every stage, so the modest glow at the end is a good starting point for a discussion of efficiency.
- Place the model on a clean, stable, dry surface and check the panel, motor, dynamo, LED and connections.
- Expose the solar panel to bright sunlight or a strong lamp.
- Watch the motor start and the dynamo turn, then look for the LED lighting.
- Shade part of the panel and note how the motor speed and LED brightness change.
Key features
- Photovoltaic panel as the first energy-conversion stage.
- DC motor that turns electrical energy into rotation.
- Dynamo stage that converts rotation back into electrical energy.
- LED output as a visible final stage of the energy chain.
- Single integrated assembly suited to supervised classroom demonstrations.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the solar wind dynamo model at its works in Laxmi Nagar, Delhi, and supplies it to schools and colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Electrical and Electronics products

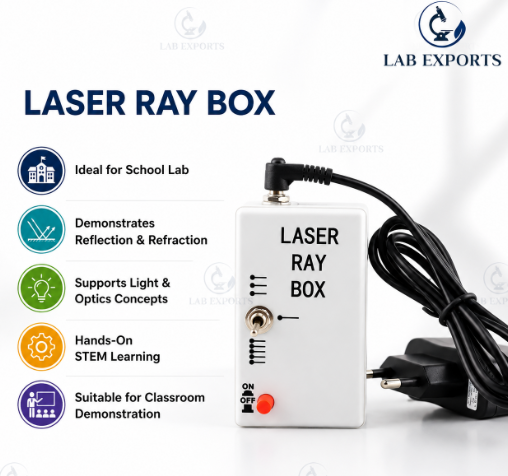

- Laser Ray Box (SCL-EAE-11128)
- Resonance Strips Model (SCL-EAE-11127)
- K Constant Spring (SCL-EAE-11126)
- Copper Voltameter (SCL-EAE-11125)

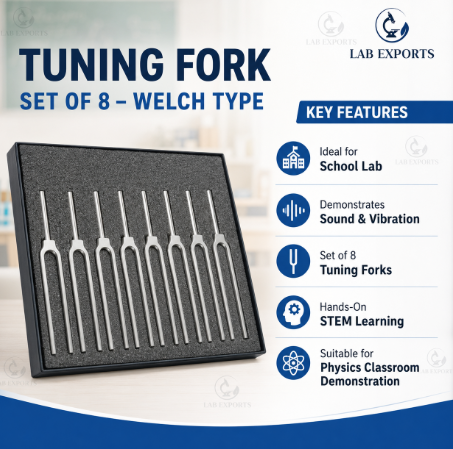

- Tuning Fork Set of 8 - Welch (SCL-EAE-11124)
- Electrical Transformer (SCL-EAE-11122)
The full range is in the Electrical and Electronics section of the Physics Lab range.
Frequently asked questions
What energy changes does the Solar Wind Dynamo Model show?
Light to electrical energy in the solar panel, electrical to mechanical energy in the motor, mechanical to electrical energy in the dynamo, and electrical energy to light in the LED.
How is a dynamo different from a motor?
A motor converts electrical energy into motion; a dynamo does the reverse, converting motion into electrical energy by electromagnetic induction. The model uses one of each.
What is the price of the solar wind dynamo model?
Prices are not published on the website. Add the solar wind dynamo model to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-EAE-11130 and the quantity, to receive a quotation.
Does Lab Exports manufacture the solar wind dynamo model?
Yes. Lab Exports manufactures the solar wind dynamo model at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-EAE-11130.
