Digital Flame Photometer
Product Code : EL-BLE-10639
Quick answer: A digital flame photometer measures sodium and potassium from the light they emit when a sample is sprayed into a flame. This dual-channel instrument reads sodium and potassium simultaneously in blood serum, urine and other biological fluids, and comes as a main unit with digital display plus an oil-free compressor unit. Lab Exports manufactures it in Delhi for colleges, universities and clinical laboratories.
Specifications
| Part | Specification |
|---|---|
| Configuration | Two units: main unit and compressor unit |
| Main unit | Digital display, detector, filters and nebulizer |
| Filters | Narrow-band interference filters on a rotating disc, selected by thumb rotation |
| Channels | Dual channel, for simultaneous sodium and potassium measurement |
| Compressor | Oil-free, with regulator for stable airflow |
| Samples | Blood serum, urine and other biological fluids |
Measuring ranges, fuel gas and power details are not listed here; email [email protected] with the house code for these details.
How it is used
Flame photometry is a form of atomic emission. The sample solution is drawn into the nebulizer, where compressed air breaks it into a fine mist that is carried into the flame. The heat excites sodium and potassium atoms, and as they fall back to their ground state each element gives off light at its own wavelength, near 589 nm for sodium and 766 nm for potassium. A narrow-band interference filter passes only the wavelength of interest to the detector, and the intensity of that light is proportional to the concentration of the element.
Because the reading is relative, the instrument is first set with standard solutions of known concentration, and samples are then read against those settings.
- Switch on the compressor unit and check that the regulator gives a steady airflow.
- Light the flame and allow the instrument to stabilise.
- Aspirate distilled water to set zero, then aspirate standard sodium and potassium solutions to set the readings.
- Aspirate the diluted sample and read sodium and potassium together on the digital display.
- Aspirate distilled water between samples to clear the nebulizer.
Key features
- Dual-channel design reads sodium and potassium at the same time
- Digital display for direct reading of results
- Narrow-band interference filters on a thumb-rotated disc
- Oil-free compressor with regulator for a stable airflow to the nebulizer
- Separate main unit and compressor unit
- Suited to serum, urine and other biological fluids in teaching and clinical laboratories
Documentation and supply
Installation instructions and a manual are supplied with the instrument. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the digital flame photometer at its works in Laxmi Nagar, Delhi, and supplies it to colleges, universities and clinical laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Biology Lab Equipment products
- Glass Dropper (EL-BLE-10638)
- Dissecting Set (EL-BLE-10640)
- Animal Prepared Slide Set (EL-BLE-10637)
- Potometer Apparatus White Stand (EL-BLE-10641)

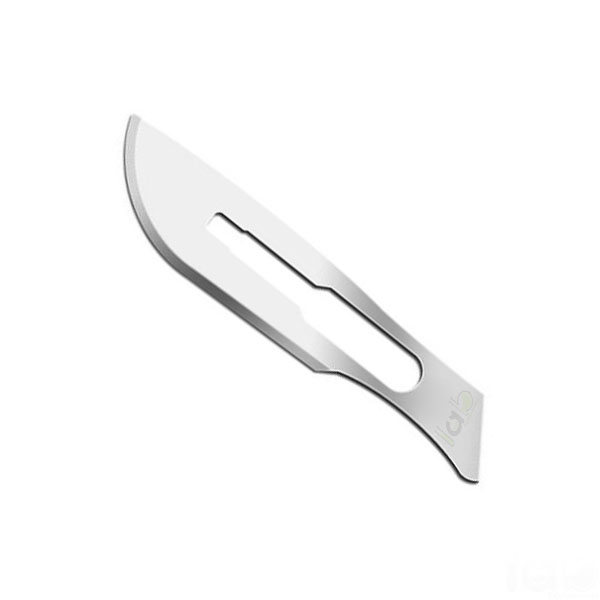

- Scalpel Blade (EL-BLE-10636)
- Ganong Potometer Apparatus (EL-BLE-10642)
The full range is in the Biology Lab Equipment section of the Biology Lab range.
Frequently asked questions
What does the digital flame photometer measure?
Sodium and potassium, read simultaneously on two channels, in blood serum, urine and other biological fluids.
How is the filter selected on the flame photometer?
The narrow-band interference filters sit on a rotating disc, and the required filter is selected by turning the disc with the thumb.
What does the compressor unit do?
The oil-free compressor supplies air through a regulator to the nebulizer, which turns the sample into a fine mist for the flame.
What is the price of the digital flame photometer?
Prices are not published on the website. Add the digital flame photometer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-BLE-10639 and the quantity, to receive a quotation.
Does Lab Exports manufacture the digital flame photometer?
Yes. Lab Exports manufactures the digital flame photometer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-BLE-10639.
