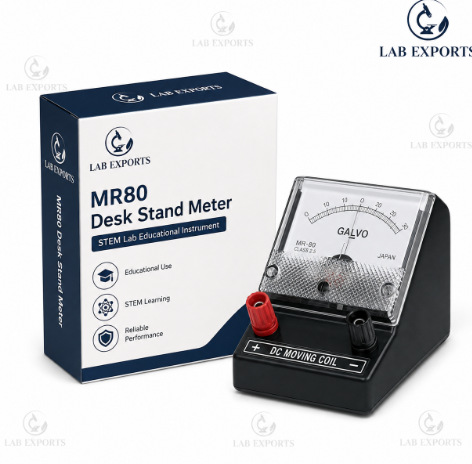

MR80 Desk Stand Meter
Product Code : SCL-EAE-11356
The MR80 Desk Stand Meter provides a visible, direct method of teaching analog measurement. An electrical input moves the pointer across the marked scale, allowing students to connect circuit conditions with changes in the displayed reading.
The instrument has a compact inclined desk-stand format with a clear protective meter cover and front-mounted red and black terminals. The supplied measuring function and calibrated range may vary, so the required voltmeter, ammeter or galvanometer configuration must be ed before ordering.
Key Features
Inclined analog dial: Positions the scale for convenient observation on a laboratory bench.
Moving-coil indication: Provides visible pointer movement during electrical measurement experiments.
Clearly marked scale: Helps students practise reading graduations and avoiding scale-selection errors.
Front connection terminals: Supports straightforward connection to supervised educational circuits.
Compact desk-stand design: Requires limited bench space and is easy to position for demonstrations.
Protective transparent cover: Shields the pointer and meter scale during routine classroom handling.
Configurable measuring range: The required voltage or current range can be specified subject to availability.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
MR80 Desk Stand Meter |
|
Brand |
Lab Exports |
|
SKU |
SAM-2 |
|
Product Category |
Physics Laboratory Equipment – Analog Lab Meters |
|
Display Type |
Inclined analog dial with pointer |
|
Meter Principle |
Moving-coil indication |
Applications / Uses
Teaching how to read an analog electrical meter.
Demonstrating pointer deflection and polarity.
Measuring voltage or current within the specified range.
Supporting series and parallel circuit experiments.
Comparing analog and digital meter readings.
Equipping school, college and teacher-training physics laboratories.
Complementing electrical and electronics laboratory equipment.
How to Use the MR80 Desk Stand Meter
Place the meter on a stable, dry laboratory bench.
Confirm its measuring function, calibrated range and terminal polarity.
Check that the pointer rests at zero before connection.
De-energise the experimental circuit.
Connect the meter in series for current measurement or in parallel for voltage measurement, as applicable.
Energise the circuit gradually and observe the pointer.
Read the correct scale directly in line with the pointer.
Switch off the circuit and disconnect the leads after use.
Safety note: Do not connect the instrument until its function and range are ed. Never exceed the rated input or use it on mains-powered circuits unless the supplied technical documentation expressly permits that application.
Care & Maintenance
Clean the cover and enclosure with a soft, dry cloth.
Protect the meter from impact, vibration and excessive moisture.
Store it upright in a dry, dust-free cabinet.
Inspect the pointer, zero position and terminals before each laboratory session.
Why Choose Lab Exports
Lab Exports manufactures, supplies and exports scientific laboratory instruments, experiment setups, science kits, mathematics kits and STEM teaching equipment. Its product range supports schools, colleges, universities and technical training institutions. Buyers can measuring ranges, accessories, branding, packaging and export requirements through the final technical quotation before ordering.
Frequently Asked Questions
What is the MR80 Desk Stand Meter used for?
It is used for supervised analog electrical measurement and classroom demonstrations. Students can observe pointer movement and practise reading a graduated scale.
Is the MR80 a voltmeter or an ammeter?
The desk-stand format may be supplied in different voltage, current or galvanometer configurations. the required function and range before ordering.
How should an analog desk stand meter be connected?
An ammeter is connected in series, while a voltmeter is connected in parallel. Always follow the polarity and range marked on the supplied instrument.
Is the MR80 suitable for school laboratories?
Yes. Its inclined display and front terminals make it suitable for supervised physics experiments and teacher demonstrations.
Can the MR80 measure AC and DC values?
The supported current type depends on the supplied configuration. Do not assume AC or DC compatibility without checking the meter face and technical datasheet.
Are connecting leads supplied?
The inclusion of connecting leads has not been verified. the complete kit contents in the final quotation.
Recommended Product Image ALT Text
MR80 Desk Stand Meter with inclined analog dial for school physics laboratories
Analog laboratory meter with red and black front connection terminals
MR80 moving-coil meter for supervised electrical experiments
Teacher demonstrating an analog desk stand meter in a classroom
Lab Exports MR80 meter for voltage and current measurement lessons
Request the required measuring configuration or browse the complete Lab Exports lab meters range for school and college physics laboratories.
