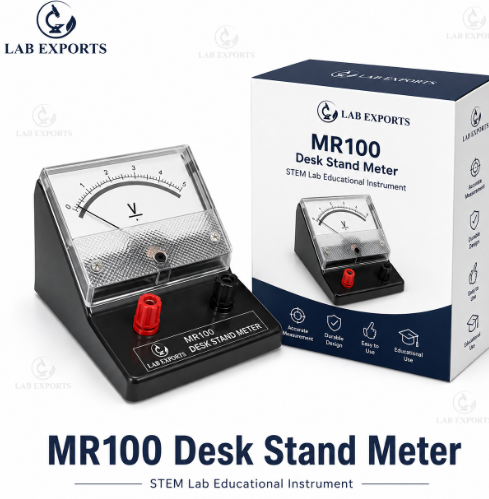

MR100 Desk Stand Meter
Product Code : SCL-EAE-11354
MR100 Desk Stand Meter – Single Analog Moving-Coil Meter
The MR100 Desk Stand Meter is an analog moving-coil instrument used for electrical measurement demonstrations in school physics laboratories and educational institutions. Its inclined dial, clearly marked scale and front connection terminals help students observe meter readings while learning voltage, current and basic circuit-measurement principles.
Product Description
The MR100 Desk Stand Meter is designed for supervised laboratory teaching and classroom demonstrations. The analog movement converts an electrical input into pointer deflection, allowing students to see how a measured quantity corresponds with a graduated scale.
The meter is mounted at an inclined angle on an ABS plastic desk stand for convenient viewing. Brass terminals support routine circuit connections, while the clearly defined dial and knife-edge pointer help reduce reading ambiguity during practical work. The exact measuring range and electrical function must be selected or ed before ordering.
Key Features
Inclined analog display: Positions the scale for convenient reading from a laboratory bench.
Moving-coil mechanism: Provides visible pointer movement for practical electrical-measurement lessons.
Clear dial markings: Supports straightforward observation during individual experiments and teacher demonstrations.
Knife-edge pointer: Helps students align the pointer accurately with the graduated scale.
ABS plastic desk stand: Provides a stable enclosure for routine supervised educational use.
Brass connection terminals: Allow external leads to be connected at the front of the meter.
Rugged educational format: Designed for repeated handling in schools, colleges and training laboratories.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
MR100 Desk Stand Meter |
|
Brand |
Lab Exports |
|
SKU |
SAM-5 |
|
Product Category |
Physics Laboratory Equipment – Analog Lab Meters |
|
Meter Type |
Analog moving-coil desk stand meter |
|
Display |
Inclined analog dial with knife-edge pointer |
|
Stand Material |
ABS plastic |
|
Terminals |
Front-mounted brass terminals |
What's Included in the Kit
1 × MR100 Desk Stand Meter
Installed analog moving-coil meter movement
Integrated ABS plastic desk stand
Front-mounted connection terminals
Connecting leads
Operating instructions
Applications / Uses
Demonstrating how an analog meter responds to an electrical input.
Teaching correct reading of graduated meter scales.
Explaining pointer deflection, polarity and measurement range.
Supporting voltage or current experiments in basic electrical circuits.
Comparing analog readings with digital measuring instruments.
Equipping school and college laboratory meter collections.
Complementing electrical and electronics laboratory equipment.
How to Use the MR100 Desk Stand Meter
Place the meter on a stable, dry laboratory bench.
Confirm the meter function, measuring range and terminal polarity.
Check that the pointer rests at zero before making a connection.
Switch off or de-energise the circuit before connecting the leads.
Connect the meter according to the experiment circuit and specified polarity.
Energise the circuit gradually and observe the pointer movement.
Read the value directly in line with the pointer and the correct scale.
Disconnect the meter after completing the observation.
Safety note: Never connect the instrument until its function and range have been verified. Do not exceed the rated input, reverse the specified polarity or use the meter on mains circuits unless the supplied technical documentation expressly permits it.
Care & Maintenance
Clean the transparent cover and enclosure with a soft, dry cloth.
Do not strike, drop or shake the meter, as the internal movement is sensitive.
Store the instrument upright in a dry, dust-free cabinet.
Inspect the terminals, pointer and zero position before each practical session.
Why Choose Lab Exports
Lab Exports manufactures, supplies and exports scientific laboratory instruments, educational experiment setups, science kits, mathematics kits and STEM teaching models. Its equipment range serves schools, colleges, universities, technical institutes and institutional laboratory buyers. Product ranges, accessories and packing requirements can be documented in the final quotation before domestic, bulk or export supply.
Frequently Asked Questions
What is an MR100 Desk Stand Meter used for?
It is used for supervised analog electrical-measurement experiments and classroom demonstrations. Students can observe pointer deflection and learn how to read a graduated scale.
Is the MR100 a voltmeter or an ammeter?
The MR100 desk-stand format may be supplied for a specified voltage or current range. The required function and range should be ed before ordering.
What type of meter movement does it use?
The instrument uses a moving-coil meter mechanism. The electrical input produces pointer movement across the marked dial.
Why is the meter mounted at an inclined angle?
The inclined position makes the analog dial easier to view when the instrument is placed on a laboratory bench or demonstration table.
Is the MR100 Desk Stand Meter suitable for schools?
Yes. It is designed for educational institutions and supervised laboratory use, including basic physics and electrical-measurement lessons.
Are connecting leads supplied with the meter?
The inclusion of connecting leads has not been verified. Buyers should the complete supply scope in the final quotation.
Recommended Product Image ALT Text
MR100 Desk Stand Meter with inclined analog dial for school physics laboratories
Analog moving-coil laboratory meter with front brass terminals
MR100 educational meter showing clear scale markings and knife-edge pointer
Teacher demonstrating an analog desk stand meter in a physics classroom
Lab Exports analog meter for electrical measurement experiments
Request the required measuring range or explore the complete Lab Exports lab meters range for physics and electrical laboratories.
