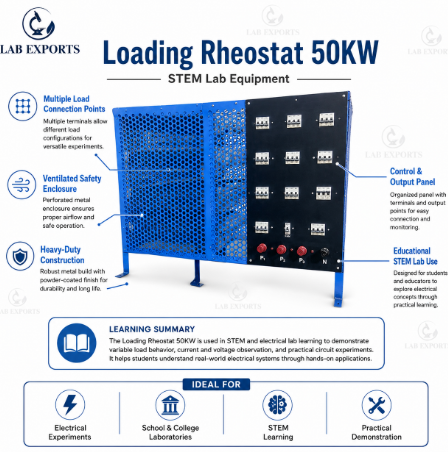

Loading Rheostat 50KW

Product Code : SCL-EAE-11317

Specifications

Resistance range, rated voltage, maximum current, AC or DC suitability, cooling and duty cycle are confirmed before procurement.

Using a high-power loading rheostat safely

At full rating the rheostat turns 50 kW of electrical power into heat; over one hour that is 50 kWh, or about 180 MJ, of energy released into the room. That is why a unit of this size is set up with generous clearances and ventilation, and why its duty cycle and cooling method are confirmed before it is ordered.

In use it works like any loading rheostat: the resistance is reduced from its maximum to raise the current drawn from the machine, voltage, current and power are recorded at each step, and the results give load characteristics, voltage regulation and, with input readings, efficiency at full load.

1. Verify the resistance, voltage, current, phase and 50 kW ratings against the machine.
2. Set the unit to its minimum-load (maximum-resistance) position.
3. Isolate and lock out the electrical supply before connecting.
4. Connect the rheostat as per the approved test diagram, and check earthing, ventilation and terminal tightness.
5. Restore the supply, bring the machine to rated conditions, and apply the load in controlled steps.

Key features

• 50 kW rated resistive loading capacity
• Adjustable resistance for controlled variation of current and machine load
• Real-power load that converts electrical energy into heat
• Continuous or stepped adjustment, according to the supplied design
• Supporting enclosure, frame or mounting structure
• Terminals for meters and test circuits in supervised training

Documentation and supply

Most Lab Exports products carry a one-year manufacturer warranty.

Lab Exports manufactures the 50 kW loading rheostat at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and technical institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.

Related Electrical and Electronics products

• Loading Capacitor 3KVAR Bank (SCL-EAE-11316)
• Loading Rheostat 10KW (SCL-EAE-11318)
• Loading Rheostat 3.5KW Bank (SCL-EAE-11315)
• Transistor Characteristics (SCL-EAE-11319)
• Loading Rheostat 3.5KW Bank Three Phase (SCL-EAE-11314)
• Loading Rheostat 3KW Bank (SCL-EAE-11313)

The full range is in the Electrical and Electronics section of the Physics Lab range.

Frequently asked questions

What is a 50 kW loading rheostat used for?

It provides an adjustable high-power resistive load for testing compatible motors, generators and electrical systems up to full load, including voltage regulation and efficiency tests.

What should be checked before ordering a 50 kW loading rheostat?

Confirm the resistance range, voltage, maximum current, AC or DC use, cooling method and duty cycle against the machines to be tested, and plan the space and ventilation for the heat it releases.

What is the price of the 50 kW loading rheostat?

Prices are not published on the website. Add the 50 kW loading rheostat to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-EAE-11317 and the quantity, to receive a quotation.

Does Lab Exports manufacture the 50 kW loading rheostat?

Yes. Lab Exports manufactures the 50 kW loading rheostat at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-EAE-11317.
