Diesel Engine Model Four Stroke
Product Code : SCL-H-11273

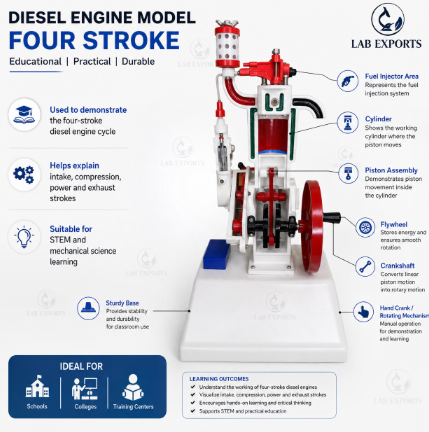

Quick answer: The Diesel Engine Model Four Stroke is a hand-cranked sectioned model of a compression-ignition engine. Turning the crank moves the piston, connecting rod, crankshaft, flywheel and valves through intake, compression, power and exhaust, so each stage can be explained slowly. It does not run on fuel. Lab Exports manufactures it in Delhi for schools, colleges and technical institutes.
Specifications
| Item | Specification |
|---|---|
| Engine principle | Four-stroke compression-ignition cycle |
| Operation | Manual demonstration using a hand crank |
| Cycle stages shown | Intake, compression, power and exhaust |
| Visible mechanisms | Piston, connecting rod, crankshaft, flywheel and valve mechanism |
| Combustion | Educational mechanical model; not intended to run on fuel |
| Category | Demonstration models - internal combustion engines |
For materials, dimensions and scale, email [email protected] with the house code.
How the four-stroke diesel cycle is shown
A four-stroke diesel needs two turns of the crankshaft for each power stroke. On intake the inlet valve opens and the descending piston draws in air only. On compression both valves close and the rising piston squeezes the air until it is hot enough to ignite fuel injected near the top of the stroke. The power stroke follows as the burning gas forces the piston down, and on the exhaust stroke the exhaust valve opens so the rising piston pushes the spent gas out.
- Place the model on a level, stable teaching bench.
- Identify the cylinder, piston, valves, connecting rod, crankshaft and flywheel.
- Turn the hand crank slowly through two full revolutions, pausing at each stroke.
- Watch when the inlet and exhaust valves open and close relative to the piston position.
- Compare the diesel's air-only intake and compression ignition with the spark ignition of a petrol engine.
Seeing that each valve opens only once in every two crank revolutions helps students understand valve timing and why the valve gear of a four-stroke engine runs at half crankshaft speed.
Key features
- Shows intake, compression, power and exhaust as one continuous cycle
- Sectioned design exposes the cylinder, piston assembly, valve mechanism and combustion region
- Hand-operated, so the cycle can be moved slowly and each stage explained
- Connecting rod and crankshaft show how piston movement becomes rotation
- Mounted base for demonstrations on a laboratory bench; no fuel required
What is included
- One Diesel Engine Model Four Stroke
- Integrated hand crank and flywheel mechanism
- Sectioned cylinder and piston assembly
- Connecting-rod and crankshaft mechanism
- Inlet and exhaust demonstration arrangement
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the four-stroke diesel engine model at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and technical institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Heat products
- Steam Engine Model (SCL-H-11271)
- Ring and Ball Apparatus (SCL-H-11221)
- Two Stroke Petrol Engine (SCL-H-11211)
- Copper Calorimeter (SCL-H-11208)
- Two Stroke Diesel Engine (SCL-H-11192)
- Turbojet Engine Model (SCL-H-11186)
The full range is in the Heat section of the Physics Lab range.
Frequently asked questions
How is a diesel engine different from a petrol engine?
A diesel compresses air alone until it is hot enough to ignite the injected fuel, so it needs no spark plug; a petrol engine compresses a fuel-air mixture and fires it with a spark.
Does the four-stroke diesel engine model need fuel?
No. It is a mechanical teaching model worked by hand and does not run a combustion process.
What is the price of the four-stroke diesel engine model?
Prices are not published on the website. Add the four-stroke diesel engine model to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-H-11273 and the quantity, to receive a quotation.
Does Lab Exports manufacture the four-stroke diesel engine model?
Yes. Lab Exports manufactures the four-stroke diesel engine model at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-H-11273.
Request a quote
Email [email protected] with the house code SCL-H-11273 and the quantity, or add the four-stroke diesel engine model to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
